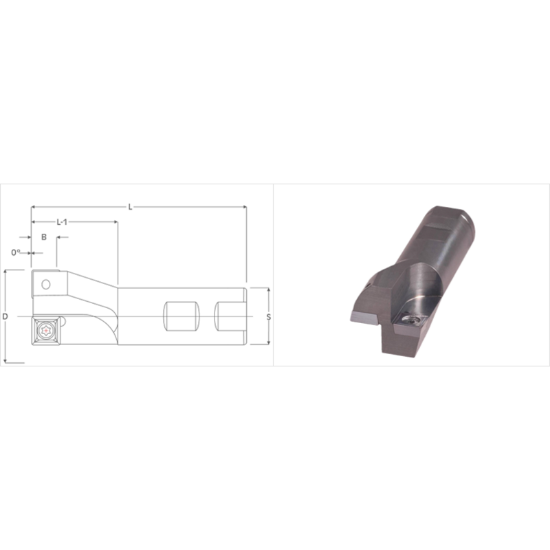

Picture of K-Tool DM-500 * Milling Cutter 90.0°, Drill Mill 0.500 Cutter Diameter 0.500 Weldon

K-Tool DM-500 * Milling Cutter 90.0°, Drill Mill 0.500 Cutter Diameter 0.500 Weldon

ANSI: DM-500 *

ISO: DM-500 *

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-500 *
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Pocket Milling, Drilling, Ramp Milling, Side Milling, Plunge Milling, Shoulder Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA Yes
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Neck Length 0.6250 15.88MM
Machine Side Connection Type Weldon
Overall Len 2.6250 66.68MM
Depth Of Cut Max 0.2350
Flutes/Inserts 1
Cutting & Machining Properties
Insert Style SD
Fasteners & Connectors
Insert Screw 300T
