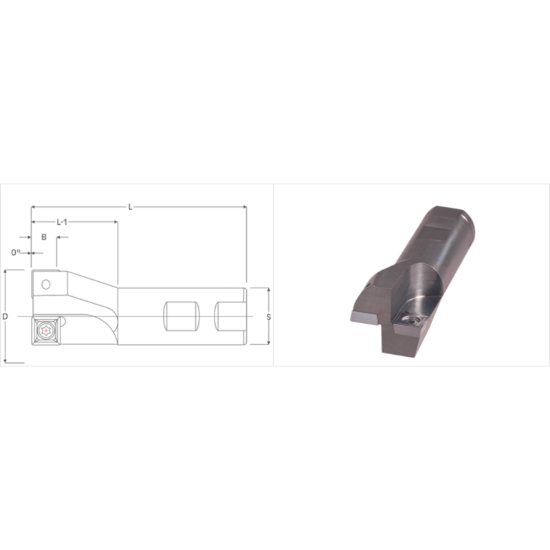

Picture of K-Tool DM-375 * Milling Cutter 90.0°, Drill Mill 0.375 Cutter Diameter 0.500 Weldon

K-Tool DM-375 * Milling Cutter 90.0°, Drill Mill 0.375 Cutter Diameter 0.500 Weldon

ANSI: DM-375 *

ISO: DM-375 *

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-375 *
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Drilling, Ramp Milling, Side Milling, Slot Milling, Shoulder Milling, Pocket Milling, Plunge Milling
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA Yes
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Depth Of Cut Max 0.1700
Cutter Dia 0.3750 9.53MM - 3/8
Tool Material Steel
Neck Length 0.6250 15.88MM
Machine Side Connection Type Weldon
Flutes/Inserts 1
Cutting & Machining Properties
Insert Style SD
Fasteners & Connectors
Insert Screw 164T
