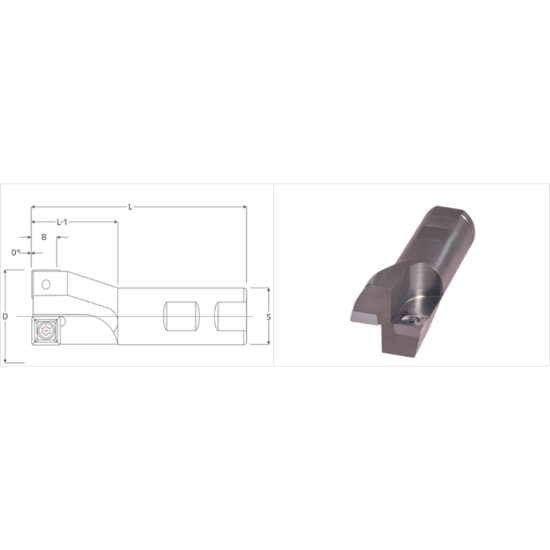

Picture of K-Tool DM-3250 Milling Cutter 90.0°, Drill Mill 3.250 Cutter Diameter 1.250 Weldon

K-Tool DM-3250 Milling Cutter 90.0°, Drill Mill 3.250 Cutter Diameter 1.250 Weldon

ANSI: DM-3250

ISO: DM-3250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-3250
Delivery date: 3-5 days
$392.17

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ramp Milling, Slot Milling, Plunge Milling, Shoulder Milling, Drilling, Pocket Milling
Made In USA Yes
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Depth Of Cut Max 0.9600
Cutter Dia 3.2500 82.55MM - 3-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Neck Length 2.0000 50.80MM
Overall Len 4.2500 107.95MM
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 1412T
