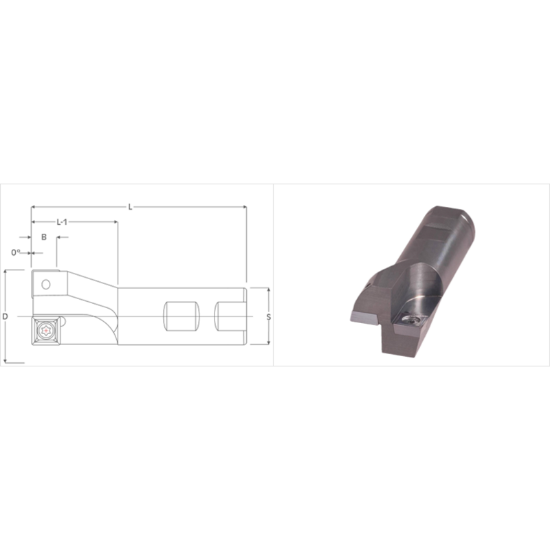

Picture of K-Tool DM-3000 Milling Cutter 90.0°, Drill Mill 3.000 Cutter Diameter 1.250 Weldon

K-Tool DM-3000 Milling Cutter 90.0°, Drill Mill 3.000 Cutter Diameter 1.250 Weldon

ANSI: DM-3000

ISO: DM-3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-3000
Delivery date: 3-5 days
$360.91

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Application Plunge Milling, Shoulder Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Drilling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA Yes
Insert Application Semi Finishing, Roughing
Insert Type Positive
Dimensional Specifications
Overall Len 4.2500 107.95MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.9600
Machine Side Connection Type Weldon
Cutter Dia 3.0000 76.20MM
Neck Length 2.0000 50.80MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 1412T
