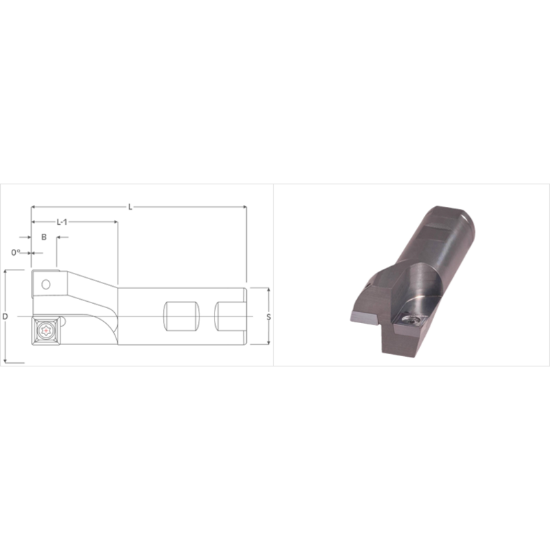

Picture of K-Tool DM-2500 Milling Cutter 90.0°, Drill Mill 2.500 Cutter Diameter 1.000 Weldon

K-Tool DM-2500 Milling Cutter 90.0°, Drill Mill 2.500 Cutter Diameter 1.000 Weldon

ANSI: DM-2500

ISO: DM-2500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-2500
Delivery date: 3-5 days
$283.19

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Application Ramp Milling, Slot Milling, Drilling, Pocket Milling, Plunge Milling, Shoulder Milling, Side Milling
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.7100
Cutter Dia 2.5000 63.50MM - 2-1/2
Neck Length 1.7500 44.45MM
Tool Material Steel
Flutes/Inserts 2
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 1012T
