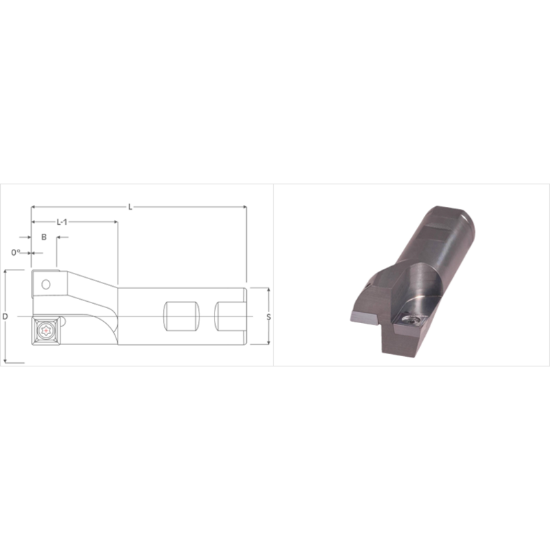

K-Tool DM-2125 Milling Cutter 90.0°, Drill Mill 2.125 Cutter Diameter 1.000 Weldon

ANSI: DM-2125

ISO: DM-2125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-2125
Delivery date: 3-5 days
$212.61

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Drilling, Slot Milling, Ramp Milling, Side Milling, Plunge Milling, Shoulder Milling, Pocket Milling
Insert Type Positive
Made In USA Yes
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 2
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.7100
Cutter Dia 2.1250 53.98MM - 2-1/8
Overall Len 4.0000 101.60MM
Machine Side Connection Type Weldon
Neck Length 1.7500 44.45MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 1012T
