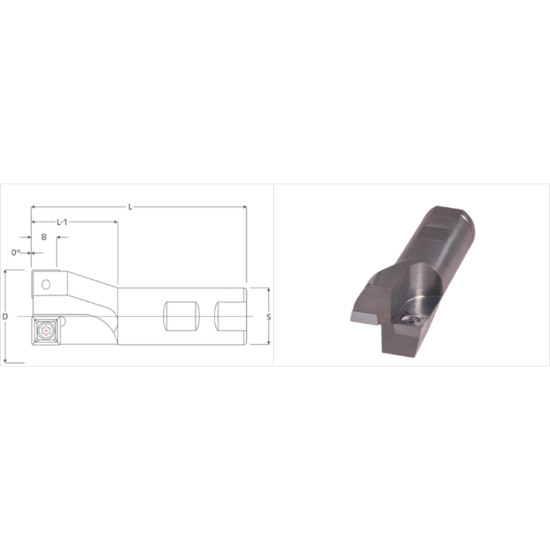

Picture of K-Tool DM-1875 Milling Cutter 90.0°, Drill Mill 1.875 Cutter Diameter 1.000 Weldon

K-Tool DM-1875 Milling Cutter 90.0°, Drill Mill 1.875 Cutter Diameter 1.000 Weldon

ANSI: DM-1875

ISO: DM-1875

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-1875
Delivery date: 3-5 days
$159.91

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Plunge Milling, Shoulder Milling, Pocket Milling, Drilling, Ramp Milling, Slot Milling
Made In USA Yes
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 1.8750 47.63MM - 1-7/8
Machine Side Connection Type Weldon
Neck Length 1.6250 41.28MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.5850
Flutes/Inserts 2
Overall Len 3.8750 98.43MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 838T
