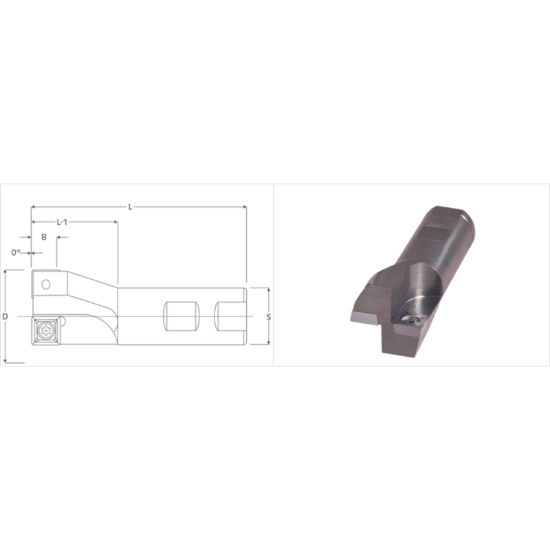

Picture of K-Tool DM-1375 Milling Cutter 90.0°, Drill Mill 1.375 Cutter Diameter 1.000 Weldon

K-Tool DM-1375 Milling Cutter 90.0°, Drill Mill 1.375 Cutter Diameter 1.000 Weldon

ANSI: DM-1375

ISO: DM-1375

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-1375
Delivery date: 3-5 days
$121.49

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Side Milling, Drilling, Pocket Milling, Plunge Milling, Shoulder Milling
Insert Application Semi Finishing, Roughing
Made In USA Yes
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.4650
Cutter Dia 1.3750 34.93MM - 1-3/8
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Overall Len 3.6250 92.08MM
Neck Length 1.3750 34.93MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 638T
