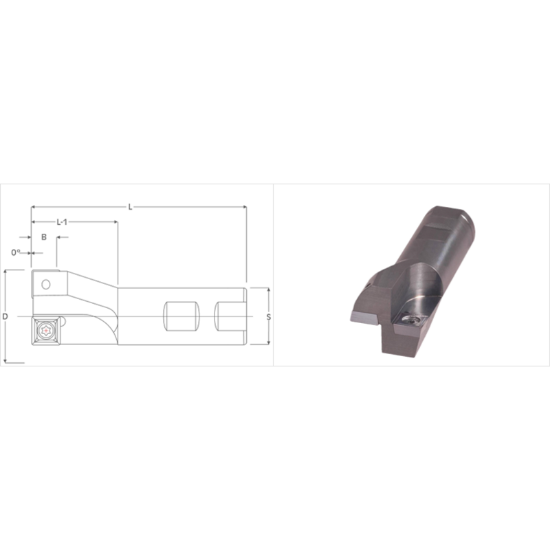

Picture of K-Tool DM-1250 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter 1.000 Weldon

K-Tool DM-1250 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter 1.000 Weldon

ANSI: DM-1250

ISO: DM-1250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-1250
Delivery date: 3-5 days
$116.13

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Drilling, Pocket Milling, Ramp Milling, Slot Milling, Side Milling, Plunge Milling, Shoulder Milling
Shipping State Pennsylvania
Insert/Tool Tool
Made In USA Yes
Insert Type Positive
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Depth Of Cut Max 0.3400
Tool Material Steel
Neck Length 1.3750 34.93MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.0000 25.40MM
Overall Len 3.6500 92.71MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 314T
