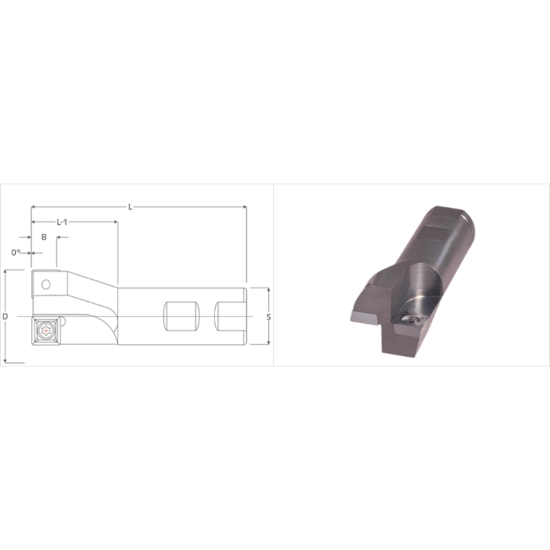

Picture of K-Tool DM-1000 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter 0.750 Weldon

K-Tool DM-1000 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter 0.750 Weldon

ANSI: DM-1000

ISO: DM-1000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-1000
Delivery date: 3-5 days
$107.20

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Made In USA Yes
Insert/Tool Tool
Application Pocket Milling, Shoulder Milling, Slot Milling, Plunge Milling, Ramp Milling, Side Milling, Drilling
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3400
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 3.2500 82.55MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cutter Dia 1.0000 25.40MM
Neck Length 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 414T
