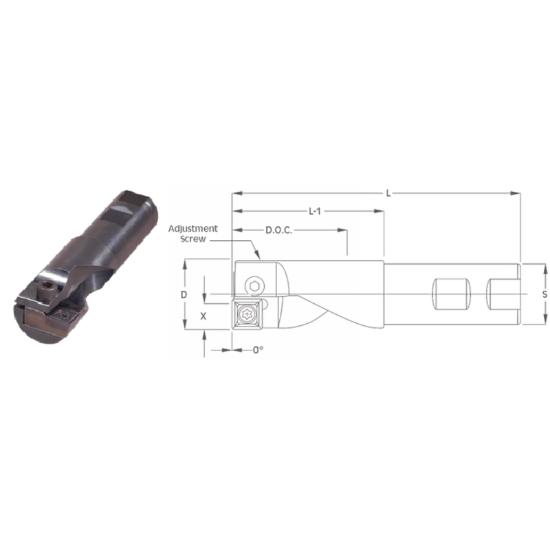

Picture of K-Tool CH-937-1187 Milling Cutter 1.000 Weldon

K-Tool CH-937-1187 Milling Cutter 1.000 Weldon

ANSI: CH-937-1187

ISO: CH-937-1187

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOCH-937-1187
Delivery date: 3-5 days
$308.20

Features And Benefits

Adjustable Counterbore Tools - Adjustable to any diameter within the selected tool range - Single insert design is accurate and easily adjustable.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Application Counterboring, Face Milling
Insert Application General Purpose
Package Size 1
Dimensional Specifications
Cut Dia Max 1.1870 30.15MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Tool Over Hang 2.2500
Cut Dia Min 0.9370 23.80MM
Tool Material Steel
Flutes/Inserts 2
Depth Of Cut Max 1.8750
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Seat/Nest CH-2522
Insert Style SP
Fasteners & Connectors
Insert Screw 300T
Seat Screw #103262
