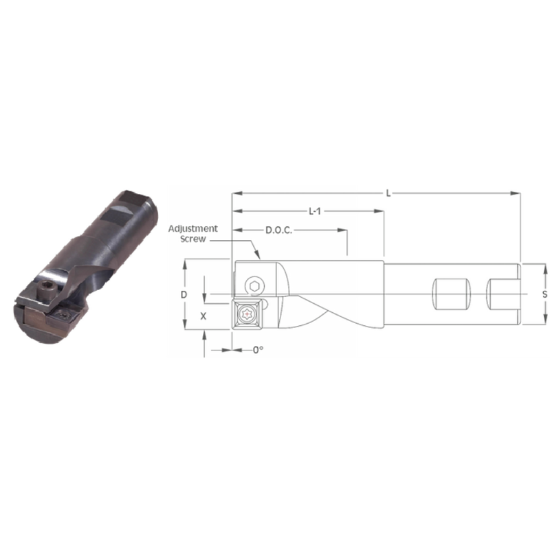

Picture of K-Tool CH-750-937 Milling Cutter 0.750 Weldon

K-Tool CH-750-937 Milling Cutter 0.750 Weldon

ANSI: CH-750-937

ISO: CH-750-937

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOCH-750-937
Delivery date: 3-5 days
$271.57

Features And Benefits

Adjustable Counterbore Tools - Adjustable to any diameter within the selected tool range - Single insert design is accurate and easily adjustable.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Package Size 1
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Application Counterboring, Face Milling
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Max 0.9370 23.80MM
Depth Of Cut Max 1.3750
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Tool Over Hang 1.7500
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Seat/Nest CH-221
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Seat Screw #103262
Insert Screw 300T
