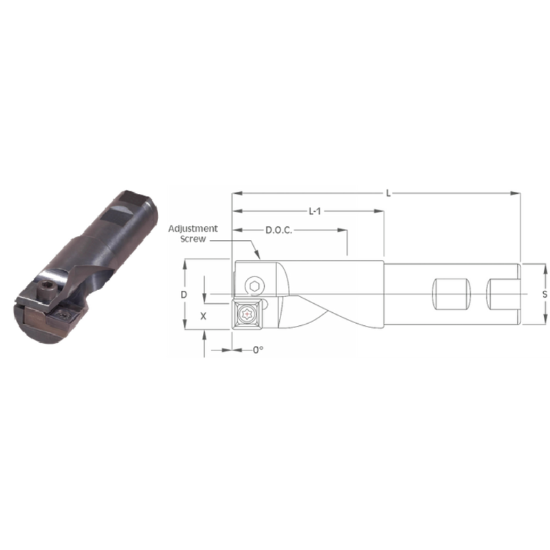

Picture of K-Tool CH-600-750 Milling Cutter 0.750 Weldon

K-Tool CH-600-750 Milling Cutter 0.750 Weldon

ANSI: CH-600-750

ISO: CH-600-750

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOCH-600-750
Delivery date: 3-5 days
$271.57

Features And Benefits

Adjustable Counterbore Tools - Adjustable to any diameter within the selected tool range - Single insert design is accurate and easily adjustable.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Counterboring, Face Milling
Insert/Tool Tool
Insert Application General Purpose
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Machine Side Connection Type Weldon
Cut Dia Min 0.6000 15.24MM
Cut Dia Max 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 1.2500
Overall Len 3.5000 88.90MM
Tool Material Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Over Hang 1.5000
Cutting & Machining Properties
Seat/Nest CH-1511
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 164T
Seat Screw #63212
