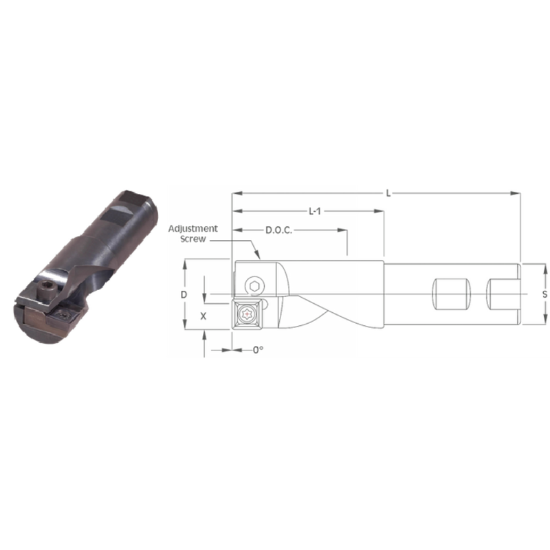

Picture of K-Tool CH-1187-1437 Milling Cutter 1.000 Weldon

K-Tool CH-1187-1437 Milling Cutter 1.000 Weldon

ANSI: CH-1187-1437

ISO: CH-1187-1437

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOCH-1187-1437
Delivery date: 3-5 days
$344.83

Features And Benefits

Adjustable Counterbore Tools - Adjustable to any diameter within the selected tool range - Single insert design is accurate and easily adjustable.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert Type Positive
Application Counterboring, Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application General Purpose
Dimensional Specifications
Machine Side Connection Type Weldon
Tool Over Hang 2.2500
Depth Of Cut Max 1.8750
Overall Len 4.5000 114.30MM
Cut Dia Min 1.1870 30.15MM
Cut Dia Max 1.4370 36.50MM
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Seat/Nest CH-432
Insert Style SP
Fasteners & Connectors
Seat Screw #142878
Insert Screw 638T
