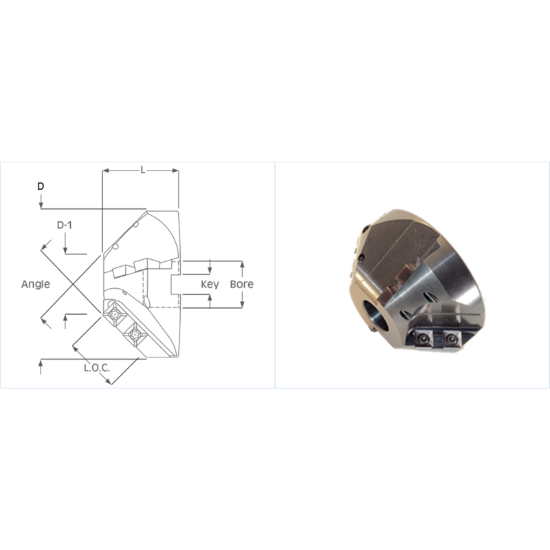

Picture of K-Tool CCS-901 Square 45.0°, Chamfer Mill Shell Arbor 0.7500 Positive 2.9850 75.82MM Cutter Dia

K-Tool CCS-901 Square 45.0°, Chamfer Mill Shell Arbor 0.7500 Positive 2.9850 75.82MM Cutter Dia

ANSI: CCS-901

ISO: CCS-901

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOCCS-901
Delivery date: 3-5 days
$460.07

Features And Benefits

Available in Shank & Shell Mill Style - Staggered Inserts to reduce tool pressure - Our ground inserts provide an excellent finish - Minimal witness lines.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Chamfering
Made In USA Yes
Dimensional Specifications
Cutter Dia 2.9850 75.82MM
Machine Side Connection Type Face Mill/Shell Mill
Length Of Cut 1.1300 28.70MM
Overall Len 1.5000 38.10MM
Insert Size Ic 33
Cut Dia Max 2.9850 75.82MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 1.2500 31.75MM - 1-1/4
Flutes/Inserts 8
Depth Of Cut Max 1.1300
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 538T
