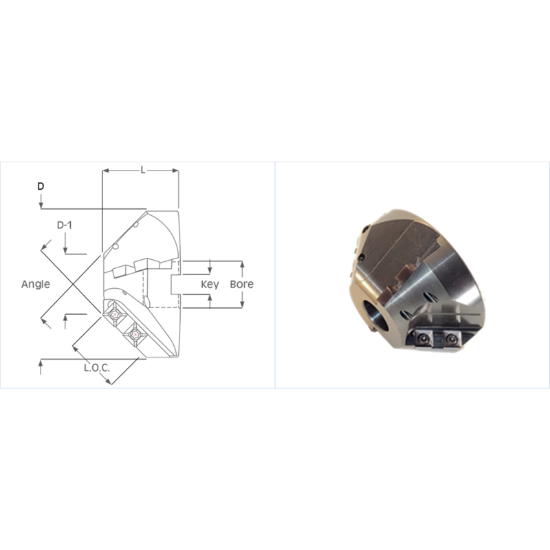

Picture of K-Tool CCS-821 Milling Cutter 82.0° 3.250 Cutter Diameter 1.000 Face Mill

K-Tool CCS-821 Milling Cutter 82.0° 3.250 Cutter Diameter 1.000 Face Mill

ANSI: CCS-821

ISO: CCS-821

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOCCS-821
Delivery date: 3-5 days
$491.33

Features And Benefits

82° Included Long Edge Chamfer Mills - Available in Shank & Shell Mill Style - Longer length of cut - Inserts on alternating flutes reduce tool pressure - Positive top inserts provide an excellent finish - Minimal witness lines.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert Type Positive
Package Size 1
Insert Application General Purpose
Application Chamfering, Long Edge Chamfering
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cutter Dia 3.2500 82.55MM - 3-1/4
Depth Of Cut Max 1.1300
Cut Dia Min 1.7180 43.64MM
Cut Dia Max 3.2500 82.55MM
Machine Side Connection Size 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.6250 41.28MM
Tool Material Steel
Length Of Cut 1.1300 28.70MM
Insert Size Ic 33
Flutes/Inserts 8
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 538T
