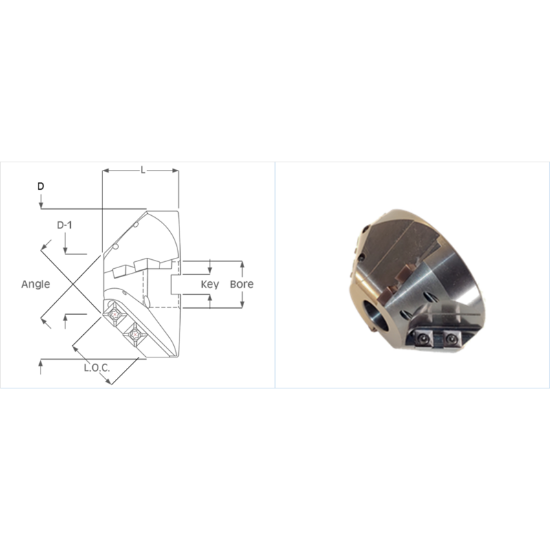

Picture of K-Tool CCS-601 Milling Cutter 60.0° 3.000 Cutter Diameter 1.000 Face Mill

K-Tool CCS-601 Milling Cutter 60.0° 3.000 Cutter Diameter 1.000 Face Mill

ANSI: CCS-601

ISO: CCS-601

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOCCS-601
Delivery date: 3-5 days
$460.07

Features And Benefits

60° Included Long Edge Chamfer Mills - Available in Shank & Shell Mill Style - Longer length of cut - Inserts on alternating flutes reduce tool pressure - Positive top insets provide an excellent finish - Minimal witness lines.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering, Long Edge Chamfering
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Made In USA Yes
Insert Application General Purpose
Dimensional Specifications
Cut Dia Min 1.8400 46.74MM
Tool Material Steel
Depth Of Cut Max 1.1300
Length Of Cut 1.6250 41.28MM
Insert Size Ic 33
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 8
Cut Dia Max 3.0000 76.20MM
Overall Len 1.6250 41.28MM
Cutter Dia 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 538T
