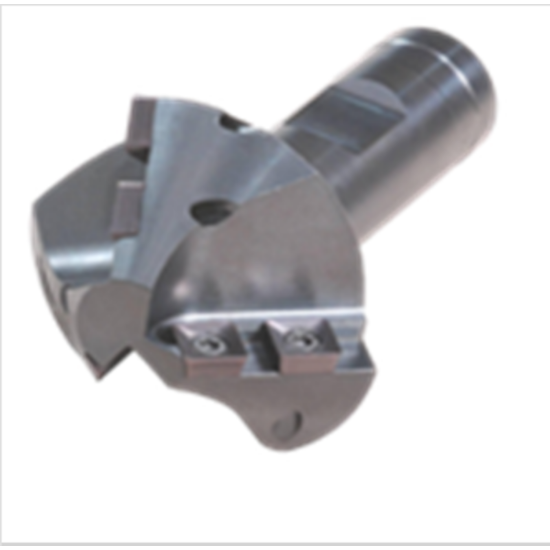

Picture of K-Tool CC-90 Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 2.0300 51.56MM Cutter Dia

K-Tool CC-90 Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 2.0300 51.56MM Cutter Dia

ANSI: CC-90

ISO: CC-90

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOCC-90
Delivery date: 3-5 days
$332.32

Features And Benefits

Available in Shank & Shell Mill Style - Staggered Inserts to reduce tool pressure - Our ground inserts provide an excellent finish - Minimal witness lines.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Positive
Package Size 1
Made In USA Yes
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Dimensional Specifications
Cutter Dia 2.0300 51.56MM
Length Of Cut 0.9000 22.86MM
Insert Size Ic 25
Depth Of Cut Max 0.9000
Cut Dia Max 2.0300 51.56MM
Neck Length 1.0000 25.40MM
Dimension Description 2.030 x 0.750 x 0.900 x 3.000
Cut Dia Min 0.6600 16.76MM
Overall Len 3.0000 76.20MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Flutes/Inserts 6
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 314T
