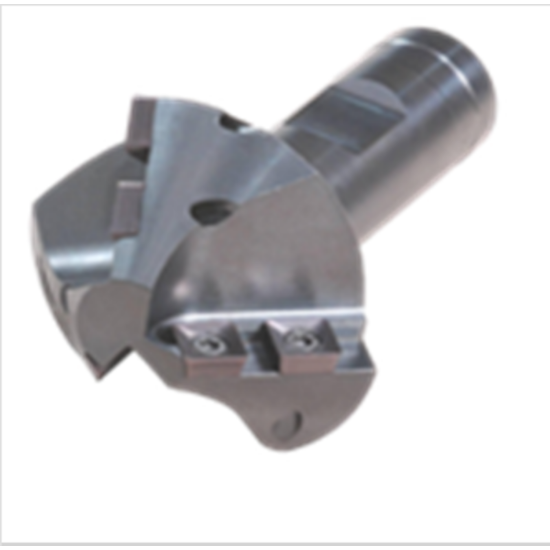

Picture of K-Tool CC-40 Milling Cutter 40.0° 2.030 Cutter Diameter 0.750 Weldon

K-Tool CC-40 Milling Cutter 40.0° 2.030 Cutter Diameter 0.750 Weldon

ANSI: CC-40

ISO: CC-40

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOCC-40
Delivery date: 3-5 days
$366.27

Features And Benefits

Great For Large Chamfers - Stacked Inserts Reduce Cutting Pressure - Positive Top Inserts for High Shear Cutting

Details

MULTI INSERT CHAMFER MILLS, USED FOR LONGER CUTS. VERY LIMITED MIS-MATCH.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA Yes
Application Chamfering, Long Edge Chamfering
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 0.9000 22.86MM
Cutter Dia 2.0300 51.56MM
Tool Material Steel
Dimension Description 2.030 x 0.750 x 0.900 x 3.125
Neck Length 1.1250 28.58MM
Overall Len 3.1250 79.38MM
Insert Size Ic 25
Depth Of Cut Max 0.9000
Cut Dia Min 1.3860 35.20MM
Cut Dia Max 2.0300 51.56MM
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Flutes/Inserts 8
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 314T
