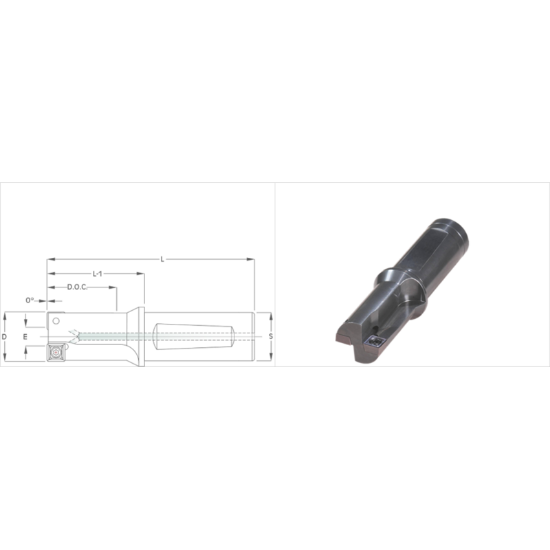

Picture of K-Tool CBN-500 Milling Cutter 90.0°, Counter Bore 0.500 Cutter Diameter 0.500 Weldon

K-Tool CBN-500 Milling Cutter 90.0°, Counter Bore 0.500 Cutter Diameter 0.500 Weldon

ANSI: CBN-500

ISO: CBN-500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOCBN-500
Delivery date: 3-5 days
$219.76

Features And Benefits

Standard And Metric Diameter Counterbore Tools - Expanded Range of Cutting Diameters: .500 - 2.000 - Cuts a Flat Counterbore within .001 - Coolant Thru - Designed for C.N.C. Applications

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA Yes
Application Face Milling, Counterboring
Package Size 1
Insert Type Positive
Insert Application General Purpose
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Weldon
Depth Of Cut Max 0.6250
Flutes/Inserts 2
Cut Dia Min 0.1800 4.57MM - #15
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 2.8120 71.42MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 164T
Socket Head Cap Screws Size 5/16
