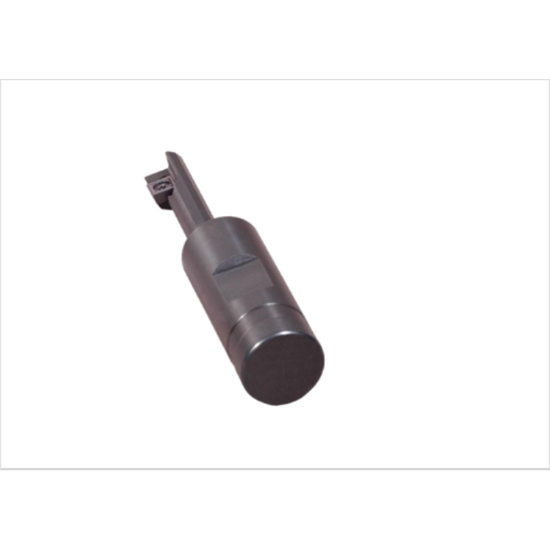

K-Tool BCB-500 Milling Cutter 0.500 Cutter Diameter 0.500 Weldon

ANSI: BCB-500

ISO: BCB-500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOBCB-500
Delivery date: 3-5 days
$316.24

Features And Benefits

Back Counterbore Tools - Counterbore without moving your part - Easy to program and use : Offset tool Enter hole Return to center Plunge Counterbore to depth Retract from cut Offset tool Exit part

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Shipping State Pennsylvania
Application Back Counterboring, Face Milling
Insert Type Positive
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Weldon
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Size 0.5000 12.70MM
Neck Length 1.1870 30.15MM
Flutes/Inserts 1
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 2.9370 74.60MM
Depth Of Cut Max 0.7500
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 164T
