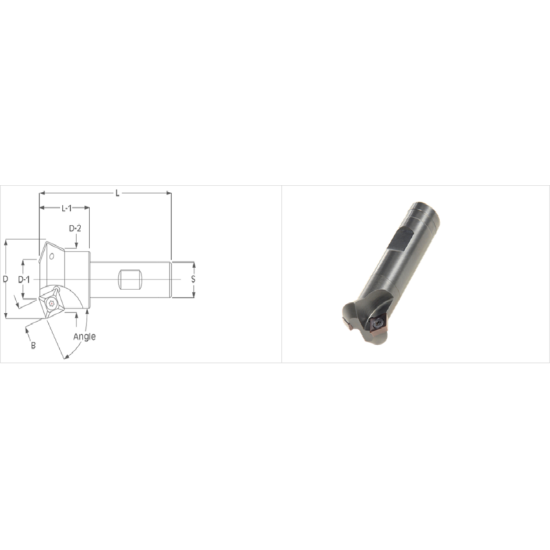

Picture of K-Tool A-6775 Milling Cutter 67.5° 2.250 Cutter Diameter 1.000 Weldon

K-Tool A-6775 Milling Cutter 67.5° 2.250 Cutter Diameter 1.000 Weldon

ANSI: A-6775

ISO: A-6775

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-6775
Delivery date: 3-5 days
$327.85

Features And Benefits

Uses High Shear Positive Top Insert - Free Cutting - Excellent Part Finishes - Several Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA Yes
Insert Application General Purpose
Shipping State Pennsylvania
Insert/Tool Tool
Application Chamfering
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.6870
Cut Dia Min 0.9600 24.38MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Max 2.2500 57.15MM
Tool Material Steel
Length Of Cut 0.6870 17.45MM
Flutes/Inserts 2
Dimension Description 2.250 x 1.000 x 0.687 x 3.750
Cutter Dia 2.2500 57.15MM - 2-1/4
Neck Length 1.5000 38.10MM
Insert Size Ic 63
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Overall Len 3.7500 95.25MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 1012T
