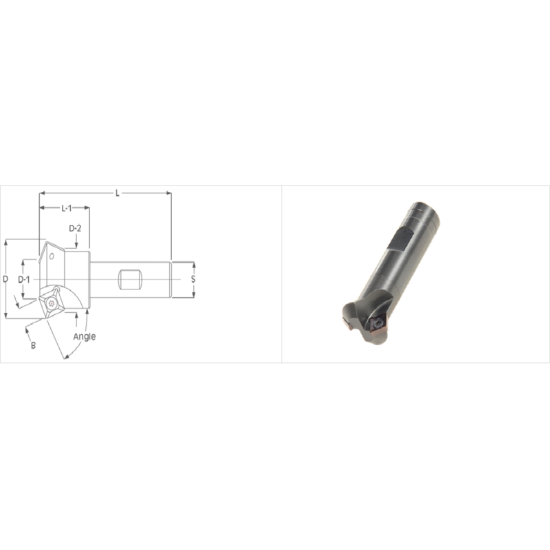

Picture of K-Tool A-5781 Milling Cutter 75.0° 1.625 Cutter Diameter 0.750 Weldon

K-Tool A-5781 Milling Cutter 75.0° 1.625 Cutter Diameter 0.750 Weldon

ANSI: A-5781

ISO: A-5781

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-5781
Delivery date: 3-5 days
$258.17

Features And Benefits

Uses High Shear Positive Top Insert - Free Cutting - Excellent Part Finishes - Several Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA Yes
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 43
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cutter Dia 1.6250 41.28MM - 1-5/8
Cut Dia Min 0.7500 19.05MM - 3/4
Cut Dia Max 1.6250 41.28MM
Overall Len 3.2500 82.55MM
Neck Length 1.2500 31.75MM
Length Of Cut 0.4380 11.13MM
Dimension Description 1.625 x 0.750 x 0.438 x 3.250
Depth Of Cut Max 0.4380
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 638T
