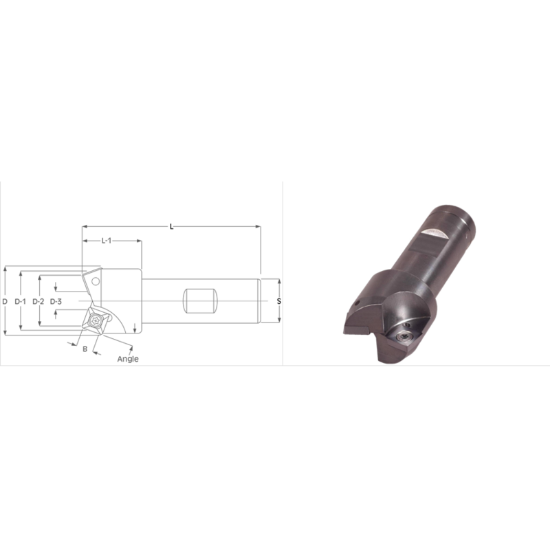

Picture of K-Tool A-5776 Milling Cutter 15.0° 1.625 Cutter Diameter 0.750 Weldon

K-Tool A-5776 Milling Cutter 15.0° 1.625 Cutter Diameter 0.750 Weldon

ANSI: A-5776

ISO: A-5776

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-5776
Delivery date: 3-5 days
$258.17

Details

GENERAL PURPOSE CHAFER TOOL USING FOUR CORNER INSERT. INSERT FITS MANY DIFFERENT TOOLS.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Insert Type Positive
Insert Application General Purpose
Package Size 1
Dimensional Specifications
Length Of Cut 0.4380 11.13MM
Dimension Description 1.625 x 0.750 x 0.438 x 3.250
Depth Of Cut Max 0.4380
Cut Dia Min 1.4100 35.81MM
Machine Side Connection Type Weldon
Cut Dia Max 1.6250 41.28MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 1.6250 41.28MM - 1-5/8
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Insert Size Ic 43
Flutes/Inserts 2
Neck Length 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 638T
