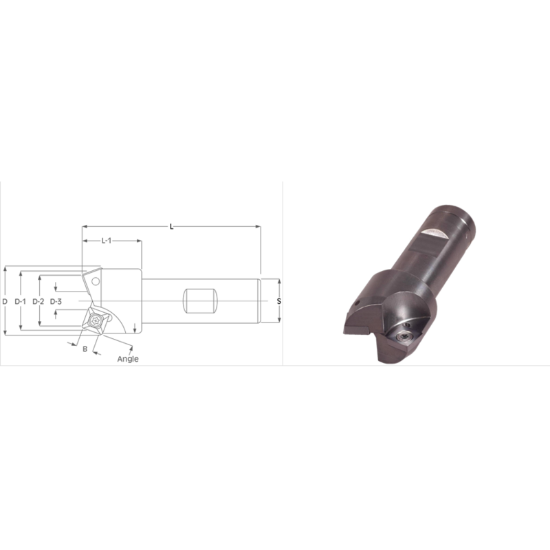

Picture of K-Tool A-5775 Milling Cutter 20.0° 2.250 Cutter Diameter 1.000 Weldon

K-Tool A-5775 Milling Cutter 20.0° 2.250 Cutter Diameter 1.000 Weldon

ANSI: A-5775

ISO: A-5775

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-5775
Delivery date: 3-5 days
$327.85

Features And Benefits

20° Multi-Purpose Chamfer Mills - Uses High Shear Positive Top Insert - Free Cutting - Excellent Part Finish - Several Insert Grades Available

Details

GENERAL PURPOSE CHAFER TOOL USING FOUR CORNER INSERT. INSERT FITS MANY DIFFERENT TOOLS.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Pennsylvania
Made In USA Yes
Insert/Tool Tool
Application Chamfering
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Material Steel
Length Of Cut 0.6870 17.45MM
Flutes/Inserts 2
Insert Size Ic 63
Machine Side Connection Size 1.0000 25.40MM
Overall Len 3.7500 95.25MM
Depth Of Cut Max 0.6870
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.7900 45.47MM
Machine Side Connection Type Weldon
Dimension Description 2.250 x 1.000 x 0.687 x 3.750
Cutter Dia 2.2500 57.15MM - 2-1/4
Cut Dia Max 2.2500 57.15MM
Neck Length 1.5000 38.10MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 1012T
