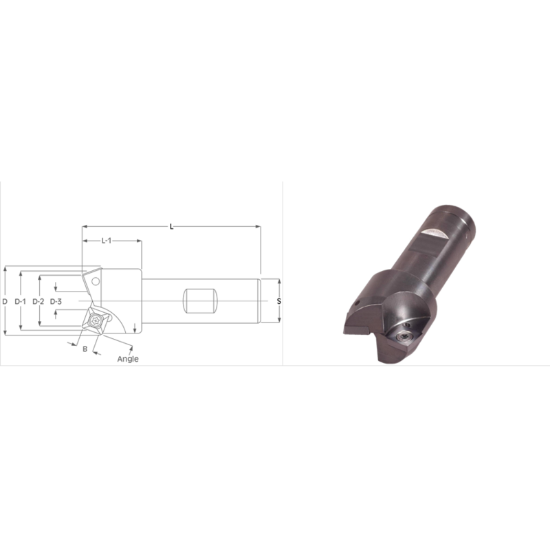

Picture of K-Tool A-5774 Milling Cutter 20.0° 1.125 Cutter Diameter 0.750 Weldon

K-Tool A-5774 Milling Cutter 20.0° 1.125 Cutter Diameter 0.750 Weldon

ANSI: A-5774

ISO: A-5774

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-5774
Delivery date: 3-5 days
$176.88

Features And Benefits

20° Multi-Purpose Chamfer Mills - Uses High Shear Positive Top Insert - Free Cutting - Excellent Part Finish - Several Insert Grades Available

Details

GENERAL PURPOSE CHAFER TOOL USING FOUR CORNER INSERT. INSERT FITS MANY DIFFERENT TOOLS.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert Type Positive
Insert/Tool Tool
Application Chamfering
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3120
Flutes/Inserts 2
Cut Dia Min 0.9200 23.37MM
Overall Len 3.0000 76.20MM
Dimension Description 1.125 x 0.750 x 0.312 x 3.000
Neck Length 1.0000 25.40MM
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Length Of Cut 0.3120 7.92MM
Cutter Dia 1.1250 28.58MM - 1-1/8
Cut Dia Max 1.1250 28.58MM - 1-1/8
Machine Side Connection Type Weldon
Insert Size Ic 32
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 438T
