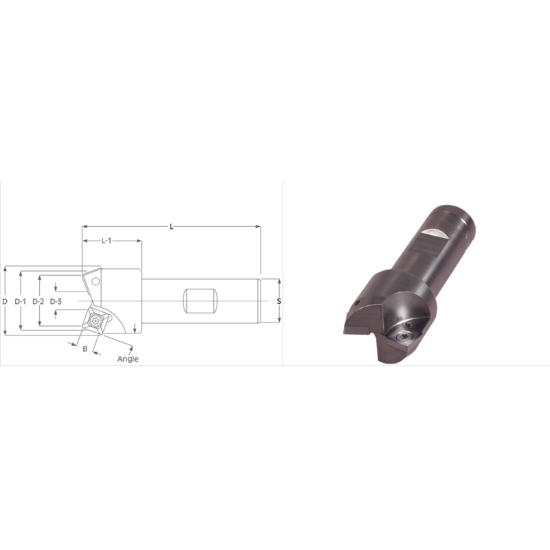

Picture of K-Tool A-5769 Milling Cutter 30.0° 0.625 Cutter Diameter 0.500 Weldon

K-Tool A-5769 Milling Cutter 30.0° 0.625 Cutter Diameter 0.500 Weldon

ANSI: A-5769

ISO: A-5769

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-5769
Delivery date: 3-5 days
$131.32

Features And Benefits

30° Multi-Purpose Chamfer Mills - Uses High Shear Positive Top Insert - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Details

GENERAL PURPOSE CHAFER TOOL USING FOUR CORNER INSERT. INSERT FITS MANY DIFFERENT TOOLS.

Products specifications
Attribute name Attribute value
General Product Information
Application Chamfering
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA Yes
Insert Application General Purpose
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Cutter Dia 0.6250 15.88MM - 5/8
Insert Size Ic 15
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.1560 3.96MM
Dimension Description 0.625 x 0.500 x 0.156 x 2.500
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Depth Of Cut Max 0.1560
Flutes/Inserts 2
Cut Dia Min 0.4850 12.32MM
Neck Length 0.7500 19.05MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 164T
