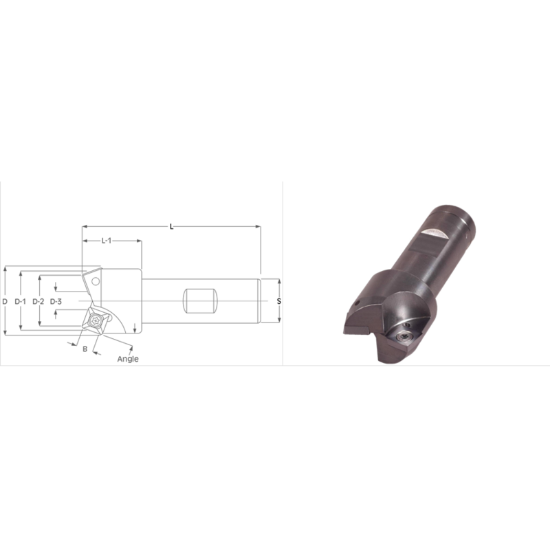

Picture of K-Tool A-5768 Milling Cutter 15.0° 0.625 Cutter Diameter 0.500 Weldon

K-Tool A-5768 Milling Cutter 15.0° 0.625 Cutter Diameter 0.500 Weldon

ANSI: A-5768

ISO: A-5768

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-5768
Delivery date: 3-5 days
$131.32

Details

GENERAL PURPOSE CHAFER TOOL USING FOUR CORNER INSERT. INSERT FITS MANY DIFFERENT TOOLS.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Made In USA Yes
Dimensional Specifications
Dimension Description 0.625 x 0.500 x 0.156 x 2.500
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Depth Of Cut Max 0.1560
Flutes/Inserts 2
Insert Size Ic 15
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.1560 3.96MM
Cut Dia Min 0.5600 14.22MM
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Neck Length 0.7500 19.05MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 164T
