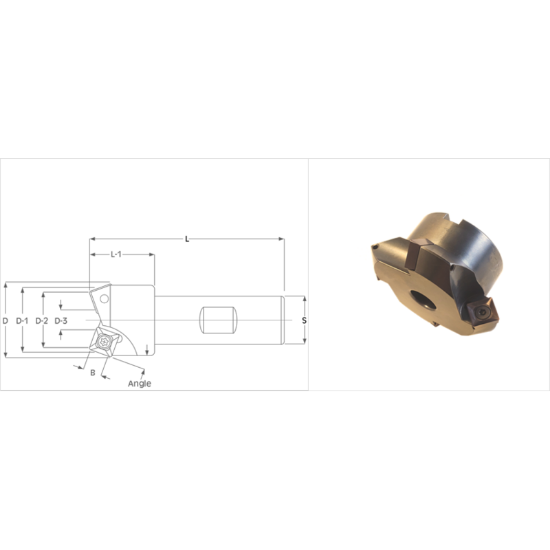

Picture of K-Tool A-4000S Square 45.0°, Chamfer Mill Shell Arbor 1.0000 Positive 4.0000 101.60MM Cutter Dia

K-Tool A-4000S Square 45.0°, Chamfer Mill Shell Arbor 1.0000 Positive 4.0000 101.60MM Cutter Dia

ANSI: A-4000S

ISO: A-4000S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-4000S
Delivery date: 3-5 days
$548.51

Features And Benefits

45° Multi-Purpose Shell Mills

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA Yes
Insert Application General Purpose
Insert/Tool Tool
Shipping State Pennsylvania
Application Chamfering
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.4860
Insert Size Ic 63
Cut Dia Min 3.0300 76.96MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Length Of Cut 0.6870 17.45MM
Cutter Dia 4.0000 101.60MM
Overall Len 1.6250 41.28MM
Cut Dia Max 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 1012T
