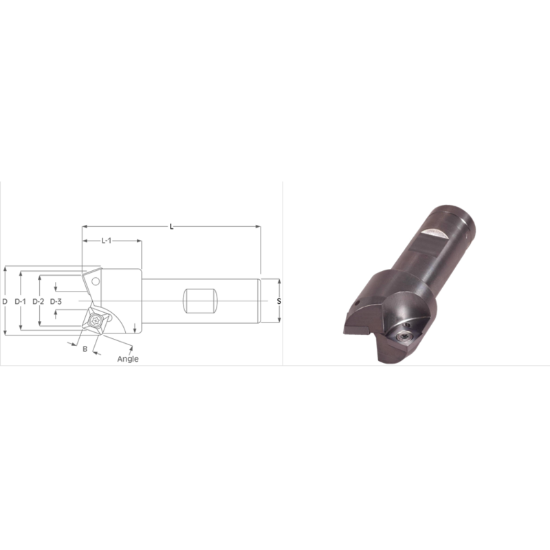

Picture of K-Tool A-3775 Milling Cutter 37.5° 2.250 Cutter Diameter 1.000 Weldon

K-Tool A-3775 Milling Cutter 37.5° 2.250 Cutter Diameter 1.000 Weldon

ANSI: A-3775

ISO: A-3775

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-3775
Delivery date: 3-5 days
$327.85

Details

GENERAL PURPOSE CHAFER TOOL USING FOUR CORNER INSERT. INSERT FITS MANY DIFFERENT TOOLS.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Insert Type Positive
Made In USA Yes
Package Size 1
Dimensional Specifications
Tool Material Steel
Cut Dia Min 1.4200 36.07MM
Cut Dia Max 2.2500 57.15MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.6880
Insert Size Ic 63
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Length Of Cut 0.6880 17.48MM
Dimension Description 2.250 x 1.000 x 0.688 x 3.750
Cutter Dia 2.2500 57.15MM - 2-1/4
Neck Length 1.5000 38.10MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 1012T
