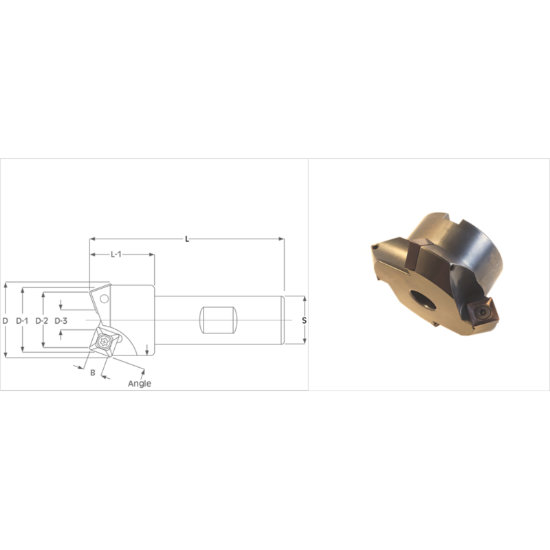

Picture of K-Tool A-3000S Square 45.0°, Chamfer Mill Shell Arbor 0.7500 Positive 3.0000 76.20MM Cutter Dia

K-Tool A-3000S Square 45.0°, Chamfer Mill Shell Arbor 0.7500 Positive 3.0000 76.20MM Cutter Dia

ANSI: A-3000S

ISO: A-3000S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-3000S
Delivery date: 3-5 days
$429.69

Features And Benefits

45° Multi-Purpose Shell Mills

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert/Tool Tool
Application Chamfering
Package Size 1
Insert Type Positive
Insert Application General Purpose
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 3.0000 76.20MM
Overall Len 1.5000 38.10MM
Length Of Cut 0.4370 11.10MM
Insert Size Ic 43
Cut Dia Min 2.3750 60.33MM - 2-3/8
Flutes/Inserts 4
Depth Of Cut Max 0.3090
Cutter Dia 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 638T
