  • K-Tool A-2399 Square 45.0°, Chamfer Mill End Mill Weldon 0.5000 Positive 0.5000 12.70MM - 1/2 Cutter Dia

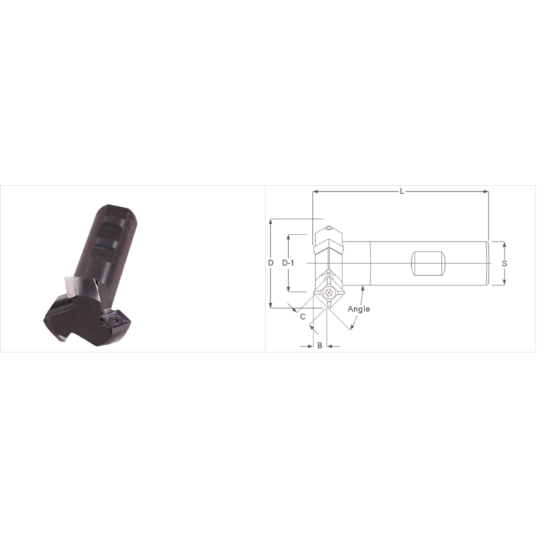

Picture of K-Tool A-2399 Square 45.0°, Chamfer Mill End Mill Weldon 0.5000 Positive 0.5000 12.70MM - 1/2 Cutter Dia

K-Tool A-2399 Square 45.0°, Chamfer Mill End Mill Weldon 0.5000 Positive 0.5000 12.70MM - 1/2 Cutter Dia

ANSI: A-2399

ISO: A-2399

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-2399
Delivery date: 3-5 days
$80.40

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Made In USA Yes
Insert/Tool Tool
Insert Application General Purpose
Shipping State Pennsylvania
Application Chamfering
Dimensional Specifications
Depth Of Cut Max 0.1100
Machine Side Connection Size 0.5000 12.70MM
Cut Dia Max 0.5000 12.70MM - 1/2
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.1560 3.96MM
Cut Dia Min 0.2850 7.24MM
Machine Side Connection Type Weldon
Overall Len 2.8750 73.03MM
Dimension Description 0.500 x 0.500 x 0.156 x 2.875
Insert Size Ic 15
Flutes/Inserts 1
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 164T
