  • K-Tool A-2199 Square 45.0°, Chamfer Mill End Mill Weldon 0.5000 Positive 0.6250 15.88MM - 5/8Cutter Dia

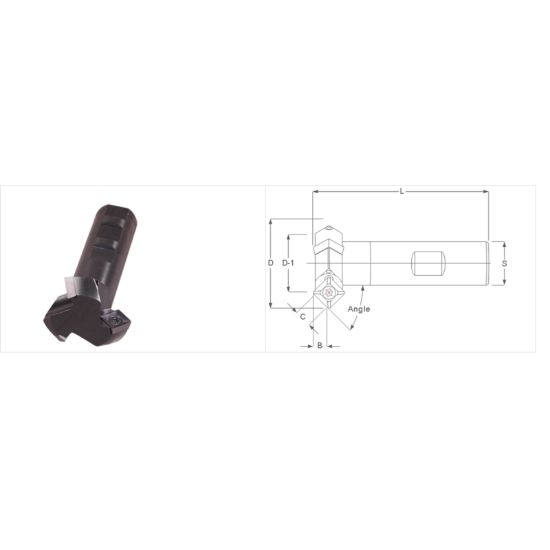

Picture of K-Tool A-2199 Square 45.0°, Chamfer Mill End Mill Weldon 0.5000 Positive 0.6250 15.88MM - 5/8Cutter Dia

K-Tool A-2199 Square 45.0°, Chamfer Mill End Mill Weldon 0.5000 Positive 0.6250 15.88MM - 5/8Cutter Dia

ANSI: A-2199

ISO: A-2199

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-2199
Delivery date: 3-5 days
$82.19

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Insert/Tool Tool
Application Chamfering
Made In USA Yes
Insert Application General Purpose
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 1
Length Of Cut 0.2180 5.54MM
Cut Dia Min 0.3200 8.13MM
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Dimension Description 0.625 x 0.500 x 0.218 x 2.500
Depth Of Cut Max 0.1550
Cutter Dia 0.6250 15.88MM - 5/8
Insert Size Ic 21
Machine Side Connection Type Weldon
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 300T
