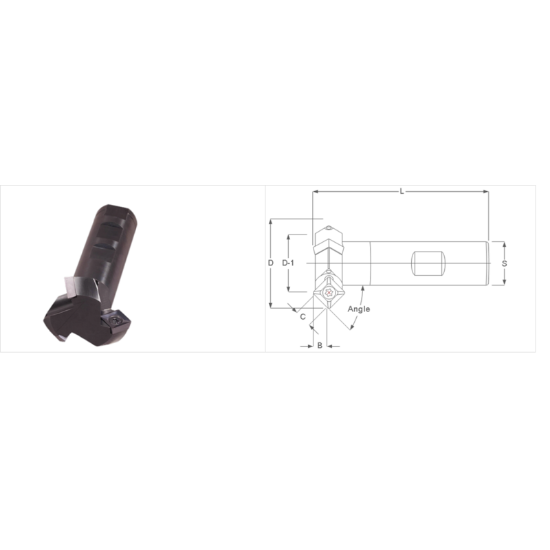

Picture of K-Tool A-1392 Square 45.0°, Chamfer Mill End Mill Weldon 1.2500 Positive 3.0000 76.20MM Cutter Dia

K-Tool A-1392 Square 45.0°, Chamfer Mill End Mill Weldon 1.2500 Positive 3.0000 76.20MM Cutter Dia

ANSI: A-1392

ISO: A-1392

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1392
Delivery date: 3-5 days
$447.56

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Insert Type Positive
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Insert Application General Purpose
Dimensional Specifications
Machine Side Connection Type Weldon
Cut Dia Max 3.0000 76.20MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Tool Material Steel
Length Of Cut 0.6870 17.45MM
Insert Size Ic 63
Dimension Description 3.000 x 1.250 x 0.687 x 4.500
Cut Dia Min 1.8100 45.97MM
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.4860
Cutter Dia 3.0000 76.20MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 1012T
