  • K-Tool A-1389 Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.2500 57.15MM - 2-1/4Cutter Dia

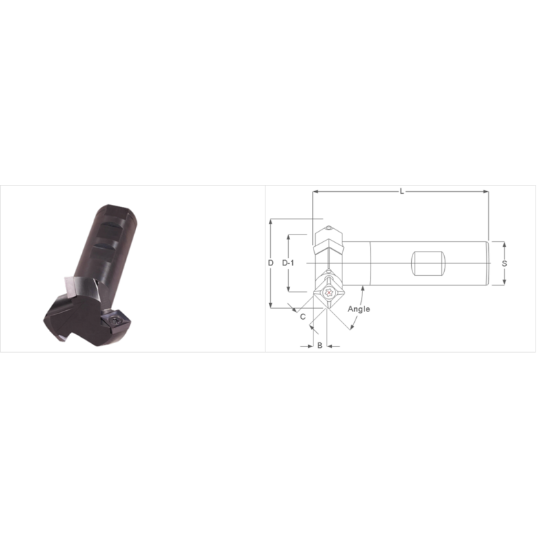

Picture of K-Tool A-1389 Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.2500 57.15MM - 2-1/4Cutter Dia

K-Tool A-1389 Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.2500 57.15MM - 2-1/4Cutter Dia

ANSI: A-1389

ISO: A-1389

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1389
Delivery date: 3-5 days
$317.13

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Insert Application General Purpose
Package Size 1
Application Chamfering
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 0.5630 14.30MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3960
Tool Material Steel
Insert Size Ic 53
Cut Dia Max 2.2500 57.15MM
Cut Dia Min 1.4500 36.83MM
Dimension Description 2.250 x 1.000 x 0.563 x 4.250
Cutter Dia 2.2500 57.15MM - 2-1/4
Overall Len 4.2500 107.95MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 838T
