  • K-Tool A-1388 Square 45.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 3.5000 88.90MM - 3-1/2Cutter Dia

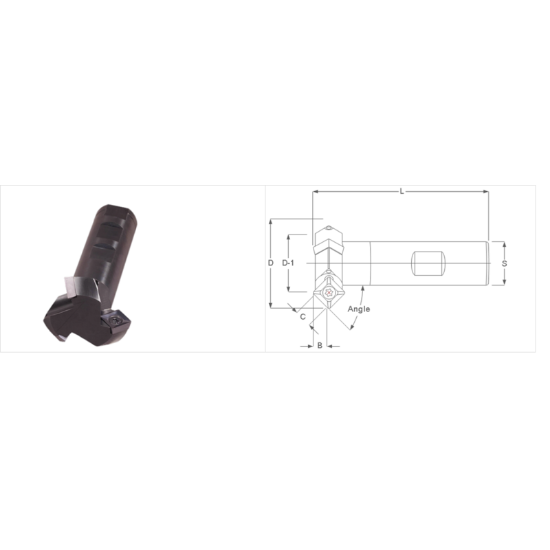

Picture of K-Tool A-1388 Square 45.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 3.5000 88.90MM - 3-1/2Cutter Dia

K-Tool A-1388 Square 45.0°, Chamfer Mill End Mill Weldon 1.5000 Positive 3.5000 88.90MM - 3-1/2Cutter Dia

ANSI: A-1388

ISO: A-1388

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1388
Delivery date: 3-5 days
$568.16

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Package Size 1
Made In USA Yes
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Dimension Description 3.500 x 1.500 x 0.937 x 5.000
Insert Size Ic 84
Cut Dia Min 2.1600 54.86MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 3.5000 88.90MM - 3-1/2
Flutes/Inserts 3
Cut Dia Max 3.5000 88.90MM - 3-1/2
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Depth Of Cut Max 0.6630
Tool Material Steel
Length Of Cut 0.9370 23.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 1412T
