  • K-Tool A-1386XL Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

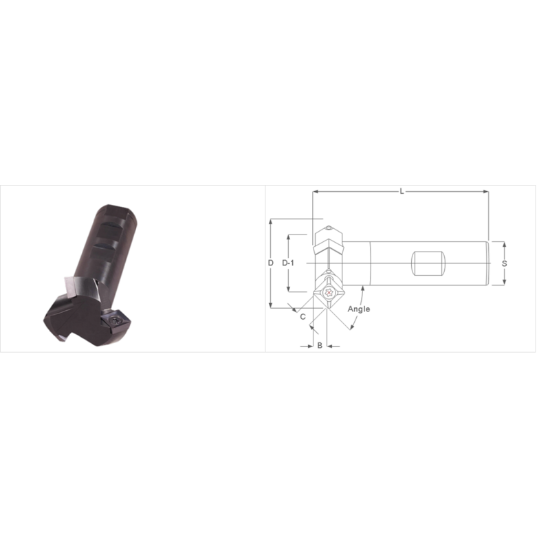

Picture of K-Tool A-1386XL Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

K-Tool A-1386XL Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

ANSI: A-1386XL

ISO: A-1386XL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1386XL
Delivery date: 3-5 days
$269.79

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Made In USA Yes
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 43
Overall Len 6.0000 152.40MM
Dimension Description 2.000 x 1.000 x 0.437 x 6.000
Depth Of Cut Max 0.3090
Cut Dia Min 1.3700 34.80MM
Cut Dia Max 2.0000 50.80MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Length Of Cut 0.4370 11.10MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 638T
