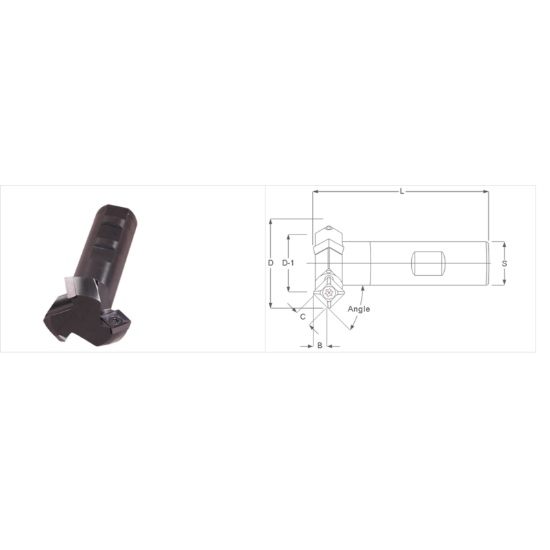

Picture of K-Tool A-1386 Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

K-Tool A-1386 Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia

ANSI: A-1386

ISO: A-1386

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1386
Delivery date: 3-5 days
$233.16

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Insert Application General Purpose
Made In USA Yes
Package Size 1
Dimensional Specifications
Dimension Description 2.000 x 1.000 x 0.437 x 4.000
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 0.4370 11.10MM
Depth Of Cut Max 0.3090
Cut Dia Min 1.3700 34.80MM
Flutes/Inserts 3
Insert Size Ic 43
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 638T
