  • K-Tool A-1385XL Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia

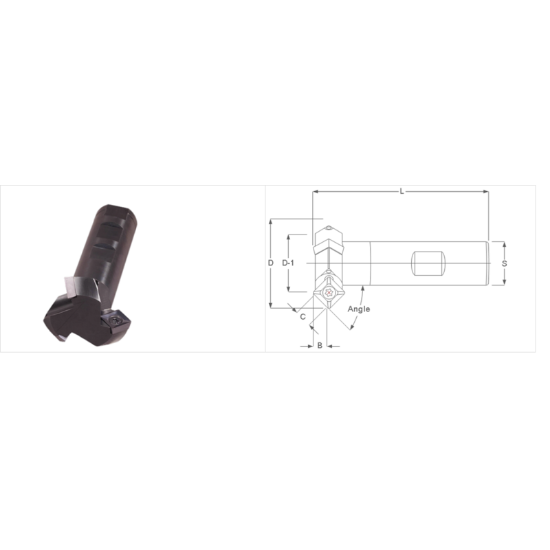

Picture of K-Tool A-1385XL Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia

K-Tool A-1385XL Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia

ANSI: A-1385XL

ISO: A-1385XL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1385XL
Delivery date: 3-5 days
$205.47

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Positive
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Made In USA Yes
Package Size 1
Dimensional Specifications
Length Of Cut 0.3120 7.92MM
Dimension Description 1.500 x 0.750 x 0.312 x 6.000
Insert Size Ic 32
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2200
Flutes/Inserts 3
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Min 1.0450 26.54MM
Cut Dia Max 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 438T
