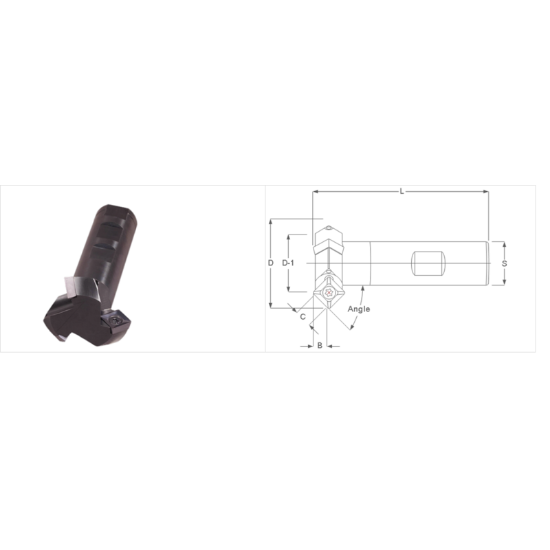

K-Tool A-1384 Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia

ANSI: A-1384

ISO: A-1384

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1384
Delivery date: 3-5 days
$154.55

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering
Insert Type Positive
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Dimension Description 1.250 x 0.750 x 0.312 x 4.000
Depth Of Cut Max 0.2200
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 0.7900 20.07MM
Tool Material Steel
Length Of Cut 0.3120 7.92MM
Insert Size Ic 32
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 438T
