  • K-Tool A-1383MF Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia

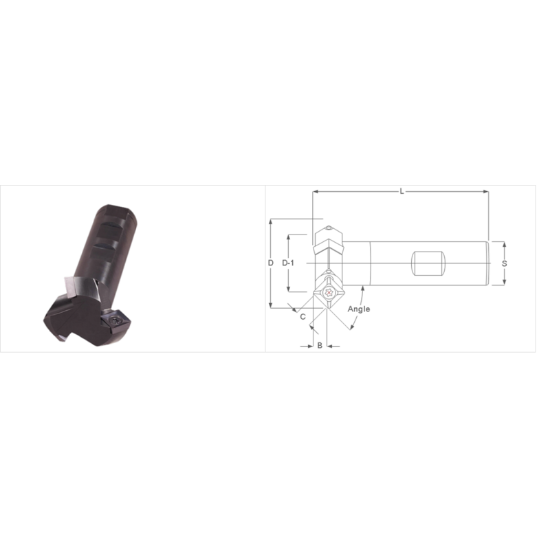

Picture of K-Tool A-1383MF Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia

K-Tool A-1383MF Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia

ANSI: A-1383MF

ISO: A-1383MF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1383MF
Delivery date: 3-5 days
$161.69

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Positive
Package Size 1
Made In USA Yes
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 15
Cutter Dia 1.0000 25.40MM
Cut Dia Min 0.8100 20.57MM
Cut Dia Max 1.0000 25.40MM
Length Of Cut 0.1250 3.18MM
Overall Len 3.2500 82.55MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Dimension Description 1.000 x 0.750 x 0.125 x 3.250
Depth Of Cut Max 0.0880
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 164T
