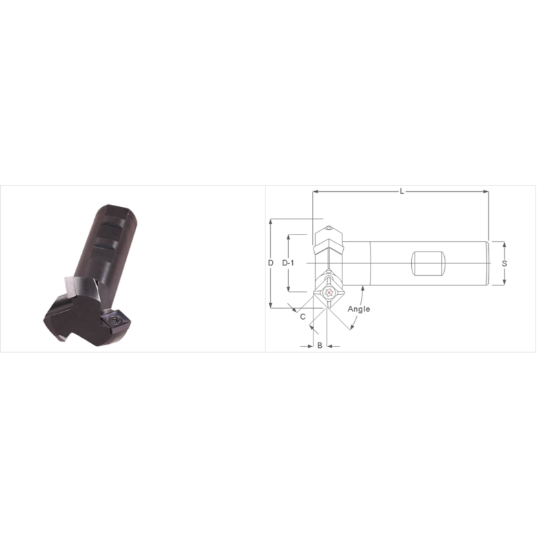

Picture of K-Tool A-1383 Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia

K-Tool A-1383 Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia

ANSI: A-1383

ISO: A-1383

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1383
Delivery date: 3-5 days
$87.55

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Insert/Tool Tool
Application Chamfering
Insert Application General Purpose
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Cut Dia Max 1.0000 25.40MM
Depth Of Cut Max 0.2200
Insert Size Ic 32
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Dimension Description 1.000 x 0.750 x 0.312 x 3.000
Flutes/Inserts 1
Cutter Dia 1.0000 25.40MM
Cut Dia Min 0.5400 13.72MM
Tool Material Steel
Length Of Cut 0.3120 7.92MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 438T
