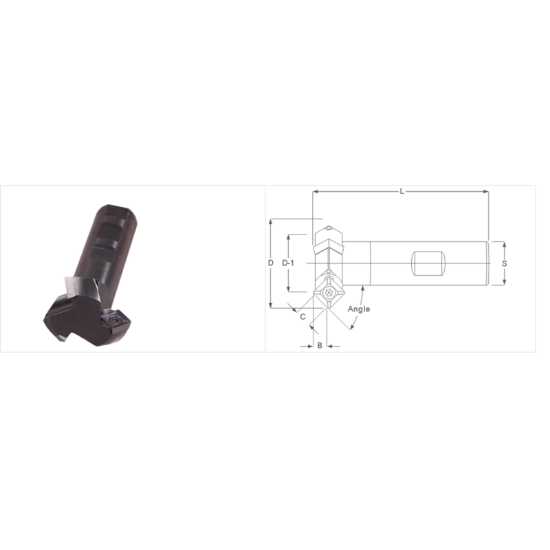

Picture of K-Tool A-0810 Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 0.8120 20.62MM Cutter Dia

K-Tool A-0810 Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 0.8120 20.62MM Cutter Dia

ANSI: A-0810

ISO: A-0810

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-0810
Delivery date: 3-5 days
$87.55

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Shipping State Pennsylvania
Made In USA Yes
Insert/Tool Tool
Application Chamfering
Insert Type Positive
Dimensional Specifications
Insert Size Ic 32
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Tool Material Steel
Length Of Cut 0.3120 7.92MM
Cutter Dia 0.8120 20.62MM
Overall Len 3.0000 76.20MM
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.2200
Cut Dia Min 0.3750 9.53MM - 3/8
Dimension Description 0.812 x 0.750 x 0.312 x 3.000
Cut Dia Max 0.8120 20.62MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 438T
