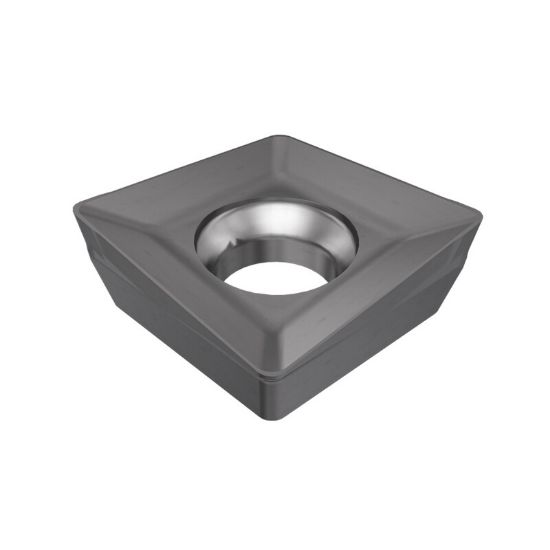

Picture of ISCAR XOMT060204T-HQ IC30N Milling Insert Square 0.016 Corner Radius

ISCAR XOMT060204T-HQ IC30N Milling Insert Square 0.016 Corner Radius

ANSI: XOMT060204T-HQ IC30N

ISO: XOMT060204T-HQ IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5601397
Delivery date: 3-5 days
$12.64

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Grade IC30N
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Insert
Application Milling Insert
Package Size 10
Insert Type Positive
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Insert Size Ic 6
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cutting Edge Mat Cermet
Insert Style XO
