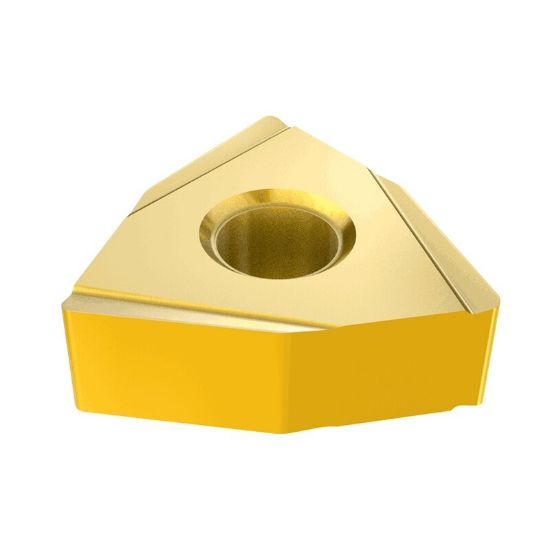

ISCAR WNMZ431-RF IC30N Turning Insert Trigon Cermet 0.016 Corner Radius

ANSI: WNMZ431-RF IC30N

ISO: WNMZ080404-RF IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5503023
Delivery date: 3-5 days
$12.97

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Double-Sided Trigon Inserts with a Ground Chipformer for Finishing Applications

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Application Finishing
Application Turning Insert
Package Size 10
Insert Type Negative
Made In USA No
Grade IC30N
Shipping State Texas
Dimensional Specifications
Insert Size Ic 12 "43"
Cut Rating <53HRC Steel, Stainless Steel
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
