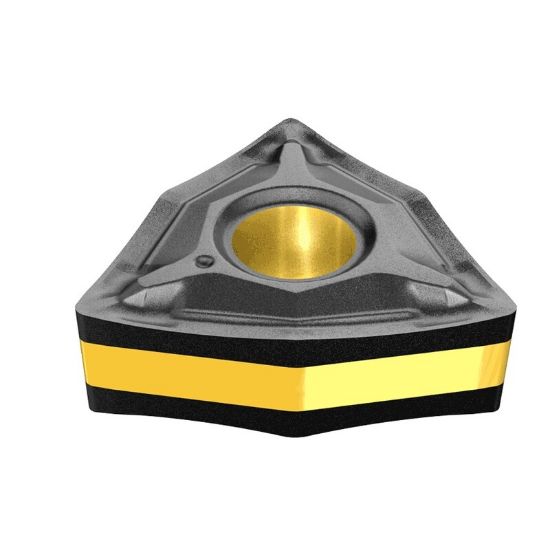

ISCAR WNMG432 WG IC520N Turning Insert Trigon Cermet TiCN + TiN 0.031 Corner Radius

ANSI: WNMG432 WG IC520N

ISO: WNMG080408 WG IC520N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5505278
Delivery date: 3-5 days
$9.04

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Double-Sided Trigon Wiper Inserts for High Surface Finish at High Feed Turning

Grade and Coating Description

A hard cermet grade with PVD coating. Suitable for finishing operations on steels and stainless steel at high cutting speeds and low feeds. Features excellent surface finish, very good wear resistance and prevents built-up edge.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert Type Negative
Insert Application Roughing, Semi Finishing
Application Turning Insert
Made In USA No
Insert/Tool Insert
Shipping State Texas
Coating TiCN + TiN
Grade IC520N
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Insert Size Ic 12 "43"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Style WN
Insert Shape/Cutter Pocket Shape Trigon
Cutting Edge Mat Cermet
