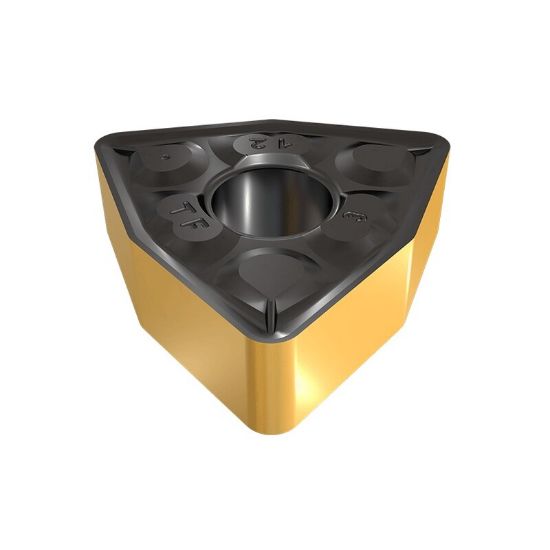

ISCAR WNMG432 TF IC520M Turning Insert Trigon Carbide TiCN 0.031 Corner Radius

ANSI: WNMG432 TF IC520M

ISO: WNMG080408 TF IC520M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5503269
Delivery date: 3-5 days
$9.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

Double-Sided Trigon Inserts for Machining a Wide Range of Materials at Medium Cutting Conditions

Grade and Coating Description

A CVD coated grade. Used for milling steel, malleable cast iron and stainless steel at medium to high cutting speed and medium feed.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Application Turning Insert
Made In USA No
Grade IC520M
Insert/Tool Insert
Coating TiCN
Package Size 10
Shipping State Texas
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Corner Radius 0.0310 0.79MM
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Style WN
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Trigon
