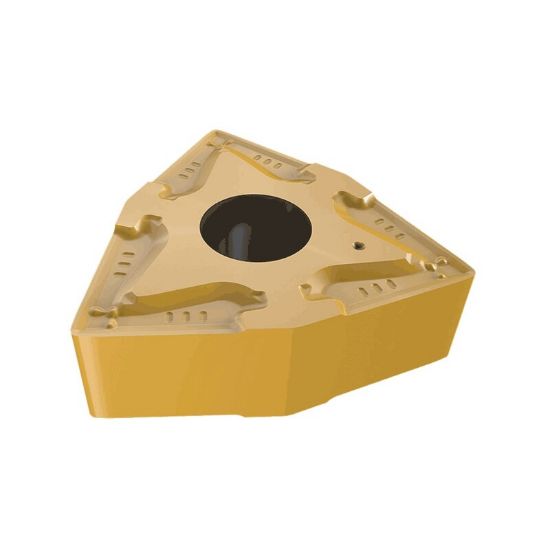

ISCAR WNMG432 FWT IC520N Turning Insert Trigon Cermet TiCN + TiN 0.031 Corner Radius

ANSI: WNMG432 FWT IC520N

ISO: WNMG080408 FWT IC520N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6170096
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Double-Sided Trigon Cermet Grade Inserts for Semi-Finishing and Finishing Applications

Grade and Coating Description

A hard cermet grade with PVD coating. Suitable for finishing operations on steels and stainless steel at high cutting speeds and low feeds. Features excellent surface finish, very good wear resistance and prevents built-up edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Insert
Grade IC520N
Application Turning Insert
Package Size 10
Insert Type Negative
Made In USA No
Coating TiCN + TiN
Dimensional Specifications
Insert Size Ic 12 "43"
Corner Radius 0.0310 0.79MM
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Style WN
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Trigon
