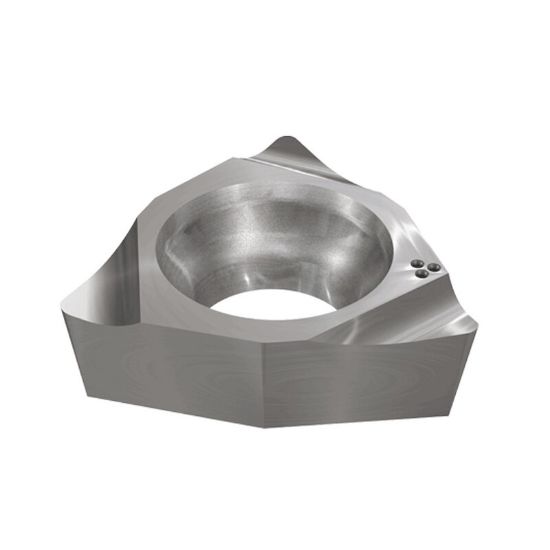

ISCAR WCGT020104L IC30N Turning Insert Trigon Cermet 0.016 Corner Radius

ANSI: WCGT020104L IC30N

ISO: WCGT020104L IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5504404
Delivery date: 3-5 days
$12.79

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Trigon Inserts with a 7° Positive Flank and Chipformer for Finish Turning

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Insert
Grade IC30N
Insert Application Finishing
Insert Type Positive
Shipping State Texas
Application Turning Insert
Package Size 10
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Cut Rating <53HRC Steel, Stainless Steel
Insert Size Ic 02 "1.2"
Cutting & Machining Properties
Insert Style WC
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Trigon
