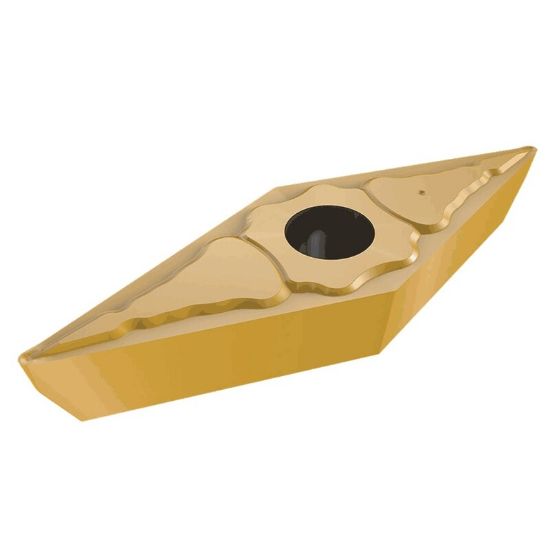

ISCAR VCMT332-FPC IC520N Turning Insert 35.0° Cermet TiCN + TiN 0.031 Corner Radius

ANSI: VCMT332-FPC IC520N

ISO: VCMT160408 FPC IC520N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6170091
Delivery date: 3-5 days
$13.10

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

35° Rhombic Positive Flank Inserts for Semi-Finish Turning of Steel and Automotive Components

Grade and Coating Description

A hard cermet grade with PVD coating. Suitable for finishing operations on steels and stainless steel at high cutting speeds and low feeds. Features excellent surface finish, very good wear resistance and prevents built-up edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Turning Insert
Package Size 10
Insert/Tool Insert
Grade IC520N
Insert Type Positive
Coating TiCN + TiN
Shipping State Texas
Made In USA No
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Insert Size Ic 16 "33"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VC
Cutting Edge Mat Cermet
